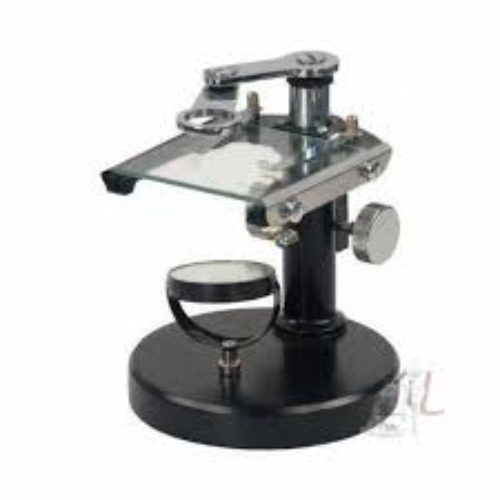

Dissecting Microscope

Name: Dissecting Microscope
Brand: MAXOME LABSCIENCES PVT. LTD.
Price: 16000.0 INR
Availability: InStock

Price 16000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Dissecting Microscope Specification

Glass Type
Magnifying Optical Glass Lens

Display Type
Direct Visual Eyepiece, Monocular

Accuracy
Resolution up to 10x, 20x, 40x (approx, depends on model)

Control Type
Manual Coarse Focusing Knob

Features
Adjustable Stage Clips, Inclined Arm, Sturdy Base

Temperature Resistance
Ambient laboratory conditions

Speed Range
Manual focus, not applicable

Shape
Compact with rectangular base

Type
Dissecting Microscope

Dimension (L*W*H)
200 x 150 x 210 mm (approx)

Equipment Type
Laboratory Optical Dissecting Microscope

Equipment Materials
Metal Stand with robust construction

Power
Not required (optical only)

Material
Optical Glass and Metal

Application
Biology, Laboratory, Educational Dissection and Visual Examination

Objective Magnification
2x or 4x (depending on model)

Focusing Mechanism
Rack and Pinion mechanism

Eyepiece Magnification
10x (standard), pairs

Total Magnification
20x or 40x (combination of eyepiece and objective)

Arm
Inclined for comfortable viewing

Interpupillary Adjustment
Not adjustable, monocular

Stage Size
Approx. 90 x 75 mm, with stage clips

Base
Painted heavy cast iron base for stability

Illumination
Mirror-based or plano-concave mirror for reflected and transmitted light (external light source may be required)

Dissecting Microscope Trade Information

Minimum Order Quantity
1 Number

Supply Ability
90 Per Week

Delivery Time
05 Days

Sample Available
No

About Dissecting Microscope

we provide high-quality laboratory equipment, precision instruments, and durable plastic ware to support scientific research and innovation. Our products are designed to meet the needs of modern laboratories, from academic to industrial settings. We offer a wide range of tools including microscopes, centrifuges, pipettes, and analytical balances. Our plastic ware collection features reliable and chemical-resistant items like test tubes, petri dishes, and storage containers. Each product is carefully sourced and tested to ensure accuracy, safety, and performance. With a focus on affordability and customer support, we are committed to helping your lab succeed.

Robust Design for Reliable Performance

This dissecting microscope features a heavy-duty metal stand and a painted cast iron base, ensuring exceptional stability during use. Its compact structure and inclined arm offer ergonomic advantages, allowing users to comfortably observe specimens over extended periods. The sturdy construction is built to withstand regular laboratory handling and educational use.

Versatile Magnification Options

Depending on the model, total magnification can be configured at 20x or 40x, courtesy of a standard 10x eyepiece combined with 2x or 4x objectives. This range supports diverse visual examination needs, from basic dissections to detailed biological studies. Its monocular optical system delivers direct, clear viewing for both beginners and experienced users.

User-Friendly Features and Simple Operation

The microscope comes equipped with a rack and pinion focusing mechanism and a manual coarse focusing knob for precise specimen adjustment. Adjustable stage clips and a sizeable 90 x 75 mm stage allow secure placement of slides or small objects. Illumination is achieved via a mirror, suitable for laboratory ambient conditions and adaptable for external light sources.

FAQ's of Dissecting Microscope:

Q: How do I operate the focusing mechanism on this dissecting microscope?

A: The focusing mechanism uses a manual rack and pinion system. To adjust focus, simply turn the coarse focusing knob until the specimen appears sharp and clear in your field of view through the eyepiece.

Q: What is the total magnification offered by this microscope, and how is it achieved?

A: The total magnification is either 20x or 40x, depending on the model chosen. This is calculated by combining the 10x magnification from the eyepiece with either a 2x or 4x objective lens.

Q: When is it necessary to use an external light source with the mirror-based illumination?

A: If the ambient laboratory lighting is insufficient, you may require an external light source. The plano-concave mirror is designed to reflect both transmitted and reflected light, enhancing visibility under varying conditions.

Q: Where can this dissecting microscope be effectively used?

A: This microscope is ideal for use in educational institutions, biology laboratories, and research facilities, especially where electrical power may not be available, as it relies solely on optical elements and manual operation.

Q: What benefits does the sturdy cast iron base offer during usage?

A: The heavy painted cast iron base provides stability, reducing vibrations and movement during observation or while handling delicate dissections, which is essential for accurate examination.

Q: How do I secure specimens on the stage during examination?

A: Specimens can be held securely in place using the adjustable stage clips. The stage, sized approximately 90 x 75 mm, accommodates a range of slide sizes and small objects.

Q: What makes this microscope suitable for educational and laboratory applications?

A: Its robust metal construction, ease of use, dependable optical performance, and flexibility in magnification make it an excellent choice for both teaching environments and routine biological examinations.
